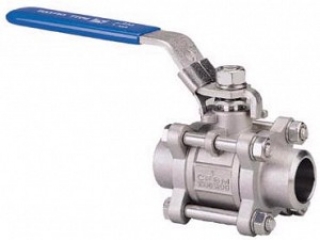

3-Piece Butt Weld End Ball Valve, Floating

3-Piece Butt Weld End Ball Valve, Floating
China 3-piece Ball Valve: Butt Weld End connection, DN8-DN100, 1/4"-4", full bore, ASTM A351 body material, anti-static device, blow-out proof stem.

Features
Full bore, 1/4"~4" (DN8~DN100)
W. P.: 1000 WOG(PN63)
W. T.:-20℃ ~200℃ (-4℉~392℉)
Investment casting
Blow-out proof stem
Anti-static device (option)
Locking device
Butt weld ends conform to ANSI B16.25 & DIN 3239 part1

Specifications:
BODY: ASTM A351-CF8M
BALL: ASTM A351-CF8M
STEM: ASTM A276-316
GLAND NUT: AISI 304
SEAT: RTFE/PTFE/CTFE
HANDLE: Stainless Steel
