Titanium alloy tubes fittings flanges

Šalis: Kinija

Titanium valve

Titanium valve
Titanium valves
Type: global valve, butterfly valve, ball valve, check valves etc
PN 10-160, class 150-2500#
API, BS, GB stabdard
Material grade: Titanium Gr1, Gr2, Gr5, Gr12

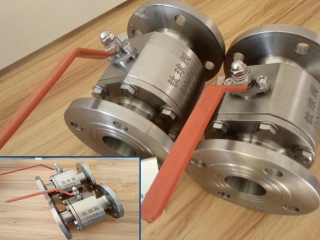

Titanium Ball Valve
1.Size:1/2"-10"
2.Class 150-600
3.Material:TA1,TA2,TA10,Gr2,Gr3
4.API6D,ASME B16.34
Specifications
Full Port Titanium Ball Valve 1.Size:1/2"-10"
2.Class 150-600
3.Material:TA1,TA2,TA10,Gr2,Gr3,Gr4.API6D,ASME B16.34,GB/T12237

Floating Ball Full Port Titanium Ball Valve
1.Standard:
Design Standard GB/T12237,API6D,ASME B16.34
Face To Face GB/T12221,API6D,ASME B16.10
Flange HG,GB,JB,API,ANSI,ISO,BS,DIN,NF,JIS
Fireproofing Grade API 6FA ,API 607
Inspection And Test JB/T9092,GB/T13927,API6D,API598

2.Specification :
Size: 1/2"-10" . Pressure:150Lbs-Class 600Lbs,1.6Mpa -10Mpa
3.Applicable medium:
Oxidizing corrosive media
4.Applicable temperature :
-196~350oC.
5.Actuator:
Manual ,Worm Gear,Pneumatic ,Electric, Gas Hydraulic.
6.Design Description :
Full port design & Reduced bore & Long patten
BB, Bolted bonnet, split body
Three piece body for 12" or above
Floating ball type
Blow-out proof stem
Fire safe construction
Anti static device
7.Material:
TA1,TA2,TA10,Gr2,Gr3
