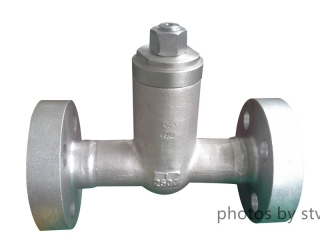

2500LB Piston Check Valve , F316 Body , F316 Trim , Seal Bonnet ,DN25, RF

2500LB Piston Check Valve , F316 Body , F316 Trim , Seal Bonnet ,DN25, RF
Product Detail
Design Standard: API602.
Body Material: F316
Nominal Diameter: 1 Inch (DN25).
Pressure: Class 2500.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+460℃.
Mode of Operation: Handwheel.
Test and Inspection: API 598.
Product Range
Body Material: A105、LF2、F5、F11、F22、304、304L、316、316L、F51、F91、20#、Inconel .Ect
Normal diameter: 1/2"~3" (DN15~DN80).
End connection: NPT, SW, Butt-Weld, Flanged.
Pressure range: 150lbs~2500lbs(PN10~PN420).
Operation: Hand wheel, Electric,Pneumatic Actuator
Working temperature: -196℃~ +560℃.
Product Keywords of 2500LB Piston Check Valve , F316 Body , F316 Trim , Seal Bonnet ,DN25, RF
