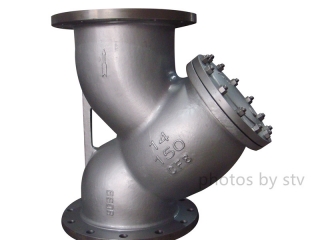

ASME B16.34 Y Flange Stainer,14 Inch,150 LB,RF End

ASME B16.34 Y Flange Stainer,14 Inch,150 LB,RF End
Product Detail
Design Standard: ASME B16.34
Body Material: CF8
Nominal Diameter: 14 Inch (DN600).
Pressure: 150lb.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+425℃.
Test and Inspection:API 598 .
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2"~16" (DN15~DN400).
End connection: NPT, Butt-Weld, Flanged.
Pressure range: 150lbs~2500lbs(PN10~PN420).
Operation: Hand wheel, Electric,Pneumatic Actuator
Working temperature: -196℃~ +560℃.
Product Keywords of JIS 10K Flange Y Strainer,DN80,CF8M
