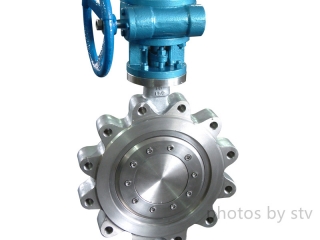

API609 Lug Type Butterfly Valve, 150LB Pressure , DN250,CF8M

API609 Lug Type Butterfly Valve, 150LB Pressure , DN250,CF8M
Product Detail

Design standard: API 609.
Body material: CF8M.
Nominal diameter: 10" (DN250).
Pressure: CL150 (PN16).
End connection: Lugged.
Face to face: ASME B16.10.
Working temperature: -29℃~+250℃.
Mode of operation: Gearbox.
Test and inspection: API 598.
Product Range
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~120" (DN50~DN3000).
End connection: Wafer, Lug, Flanged.
Pressure range: 150lbs~600lbs(PN16~PN100).
Operation: Wrench, Gearbox, Electric.

Working temperature: -46℃~+250℃.
