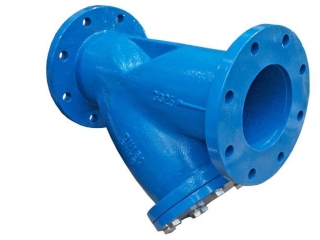

BS Cast Iron Y Strainer

BS Cast Iron Y Strainer
Specification Details

Design Std:AS2129, AS4087
Size:DN40--DN600
mesh size is 40 mesh or 400 micron
Body, bonnet: FBE Coated Cast Iron (GG25)
Screen: 1.4301-ANSI 304 Stainless Steel
COATING:EPOXY ELECTRO STATIC POWDER
Pressure Rating: PN10,PN16
COATING:EPOXY ELECTRO STATIC POWDER
Face to Face: ANSI B16.10
FLANGED: AS2129 Table D/E
Pressure Testing: in accordance with API 598.
Working temperature: -10°C to +220°C
Valve Description
BS-AS Y-type line strainers protect your fluid handling system against the damage that can occur to valves, traps and other equipment when foreign matter such as dirt, scale or welding particles travel through the pipeline
