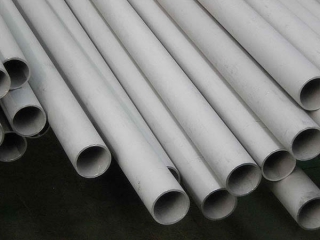

Hydraulic tubing in 316L Stainless steel seamless

<a href="http://www.sino-alloy.com/stainless-tubes/hydraulic-tubing.html">Hydraulic tubing</a> in 316L Stainless steel seamless
Stainless steel hydraulic tubing is produced according to ASTM A269 and A213, or equivalent standards, or customers’ requirements.

Materials:
The most popular material of stainless steel hydraulic tubing is AISI 316L. And we also can produce hydraulic tubing in stainless steel grades as 304/304L, 321/321H, 316Ti, 347/347H or corresponding EN/DIN steel grades 1.4301/1.4307, 1.4541/1.4878, 1.4571; duplex stainless steel grades as S31803, S32750, S32760, 2205 or corresponding EN/DIN steel grades 1.4462, 1.4510,; and super duplex stainless steel grades 904, 904L or EN/DIN steel grade 1.4539 and so on.

Size available:
O.D 6 mm to O.D 76.1mm
W.T 0.5mm to W.T 10 mm

Mechanical Properties:
Here below is the mechanical properties of the qualified 316L hydraulic tubing:
Tensile strength: Min. 485 Mpa
Yield strength: Min. 170 Mpa
Elongation %: Min. 35%
Hardness: Max. HRB 90

Applications:
316L hydraulic tubing is widely used in transfer liquids such as oil in hydraulic systems.
