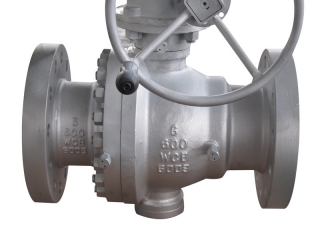

API 6D 2-PC Trunnion Ball Valves, ASTM A216 WCB, Flanged RF, Gear Operator, Class 600, 6 Inch

API 6D 2-PC Trunnion Ball Valves, ASTM A216 WCB, Flanged RF, Gear Operator, Class 600, 6 Inch
Valve Description:
Design standard: API 6D.
Body material: WCB.
Nominal diameter: 6 Inch.
Pressure: 600 LB.
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+200℃.
Test and inspection: API 598.
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 lbs~2500 lbs (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -46℃~+200℃.
