SAE split flanges to ISO 6162 and SAE J 518 C

<a href="http://www.sino-alloy.com/blog/sae-split-flange-halves.html">SAE split flanges</a> to ISO 6162 and SAE J 518 C
<b><a href="http://www.sino-alloy.com/blog/sae-split-flange-halves.html">SAE split flanges</a></b> are designed to ISO 6162, this product is one of the most popular type of SAE flanges, they are the mostly applied hydraulic flanges. Younglee is the best quality China split flange supplier, we manufactures and supplies sae split flanges in a wide range of sizes in carbon steels and stainless steels.

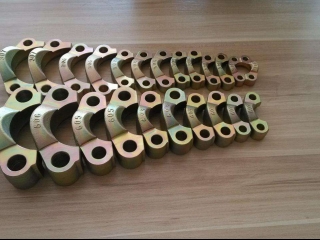

SAE split flanges are used in 2 pcs together which makes a set of flange, so one piece split SAE flange is also called SAE split flange half.

Product Standard:
Our SAE split flanges are designed and produced according to ISO 6162 and conform to SAE J 518 C.

Main series:
There are two main series Sae split flanges which are 3000 psi series and 6000 psi series split flanges.
3000 psi series split flanges are known as code 61 split flanges also, or 3000# split flanges.
6000 psi series split flanges are known as code 62 split flanges or 6000# split flanges.

Materials:

SAE split flanges are available in carbon steel and Stainless steel 304, 316, 316Ti.

Size Range:
Younglee's SAE split flanges are supplied in size range as below:
- For 3000# sae split flanges: 1/2" to 5"
- For 6000# sae split flanges: 1/2" to 2"

Applications:
Our SAE split flanges are widely used in hydraulic systems, they are used as the most safety connectors for <b><a href="http://www.sino-alloy.com/stainless-tubes/hydraulic-tubing.html">hydraulic tubing</a></b> and hydraulic hoses.
